APPLICATION:
Flex Banner the volume of cold water passing through the pipeline.
FEATURES:
Removable element structure, easy installation and maintenance, long term clear reading, magnetic drive, inter-exchangeable spare parts, low pressure loss, and long working life etc. WORKING CONDITION:
Water temperature: ≤40℃ Water pressure: ≤1.0MPa
COMPLIANCE WITH STANDARD: ISO 4064 (GB/T778-1996)

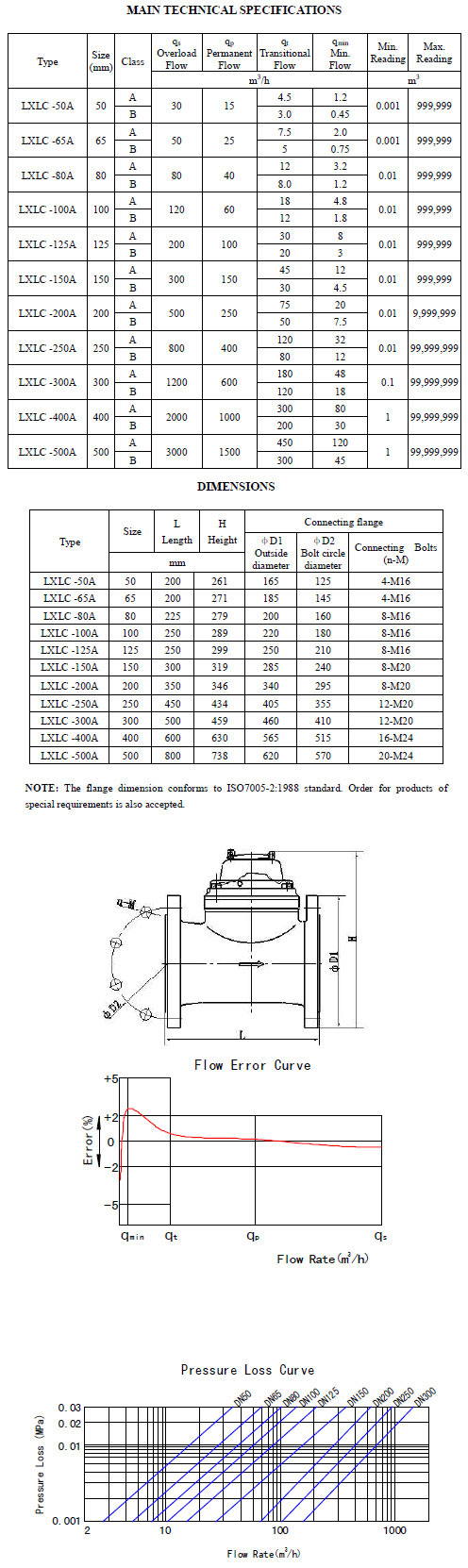

MAXIMUM PERMISSIBLE ERROR:
In the lower zone from qmin inclusive up to but excluding qt is ±5%
In the upper zone from qt inclusive up to and including qs is ±2%
