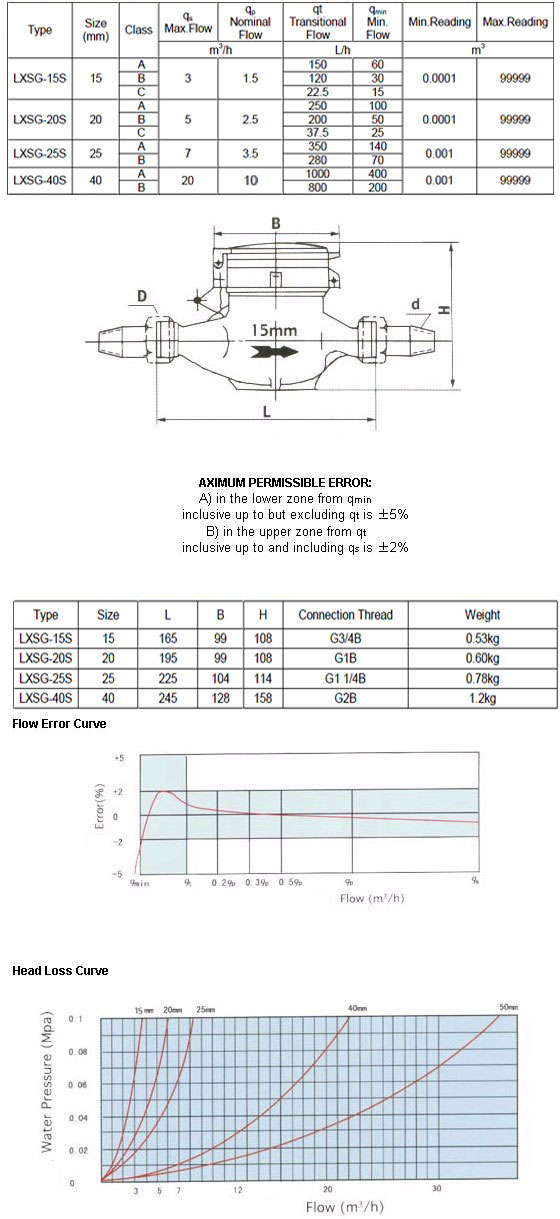

APPLICATION: ◆ Measuring the volume of cold potable water passing through the pipeline. FEATURES: ◆ Completely plastic shell, solid and robust design, long service guaranteed. ◆ High quality materials corrosion resistance. ◆ Pole ring magnet polymer coating as protection against deposits. ◆ The measuring mechanism can be exchanged. ◆ Anti-magnet. ◆ Inside calibration device. ◆ Large measuring range high flow accuracy. ◆ Steady curve characteristics. ◆ Measuring accuracy is up to ISO4064, Class B. ◆ Overload flowrate: Qs=2Qp (Qn=nominal flowrate) WORKING CONDITION: ◆Water temperature: ≤50℃ ◆Water pressure: ≤1.0MP(10bar) MAXIMUM PERMISSIBLE ERROR: ◆In the lower zone from qmin inclusive up to but excluding qt is ±5% ◆In the upper zone from qt inclusive up to and including qs is ±2% ACCESSORIES Optional: Both brass thread connections and plastic thread connections are available. |
