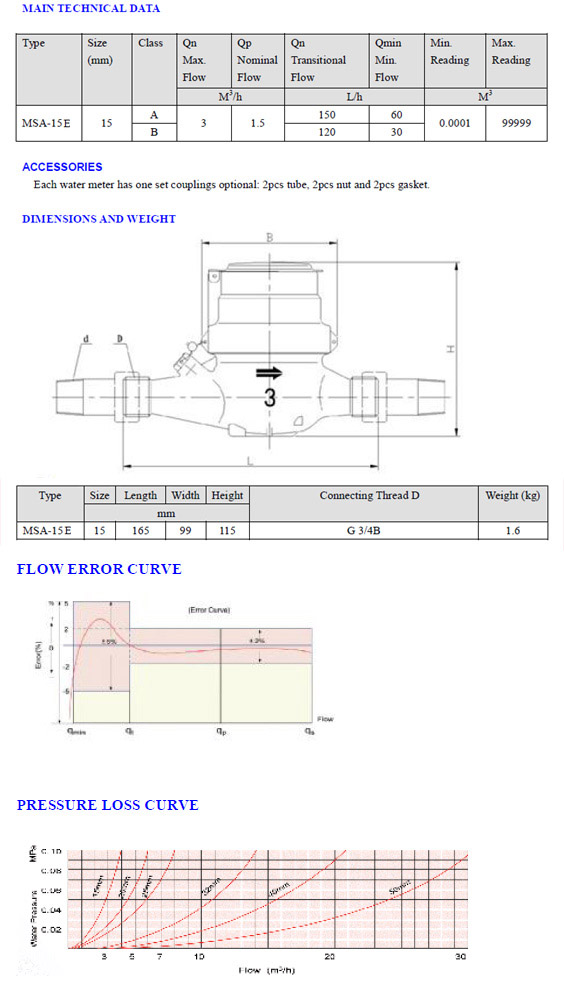

  Product  Type: MSA-15E  MULTI-JET DRY TYPE WATER METER
  Remark:
APPLICATION
Measuring the volume of cold potable water passing through the pipeline

FEATURES
Dry type, magnetic drive, antimagnetic function, easy and long term clear reading, frost resistance, long work life
Available with non-return valve and inlet strainer on request

WORKING CONDITION
Water temperature: ≤50 for cold water meter
≤90 for hot water meter
Water pressure: ≤1MPa or 1.6MPa optional
(10bar or 16bar optional)

MAXIMUM PERMISSIBLE ERROR
In the lower zone from Qmin inclusive up to but excluding Qt is ±5% _ In the upper zone from Qt inclusive up to and including Qs is: cold water meter ±2%, hot water meter ±3%.

NOTE
Technical data conform to International Standard ISO4064
