Remark: |

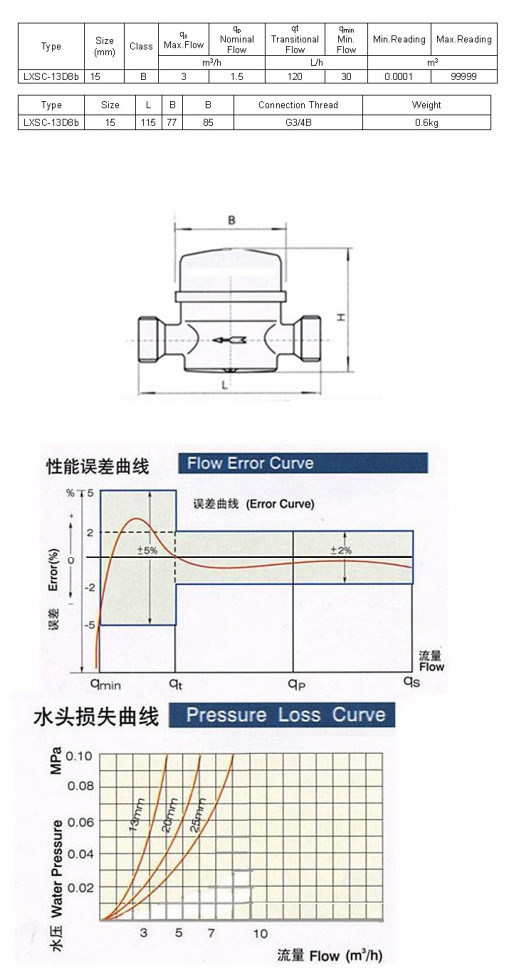

APPLICATION: ◆ Measuring the volume of cold potable water passing through the pipeline. FEATURES: ◆ Single jet, dry dial; ◆ Magnetic drive, magnet resistance; ◆ Optimum accuracy and performance at all times; ◆ Accurate measurement, easy and long term clear reading, etc. ◆ Measuring accuracy is up to ISO4064, Class B WORKING CONDITION: ◆Water temperature: Cold Water Meter ≤40℃ Hot Water Meter ≤90℃ ◆Water pressure: ≤1.6Mpa (16bar) MAXIMUM PERMISSIBLE ERROR: ◆In the lower zone from qmin inclusive up to but excluding qt is ±5% ◆In the upper zone from qt inclusive up to and including qs is ±2%
|
