APPLICATION Measuring the volume of cold potable water passing through the pipeline

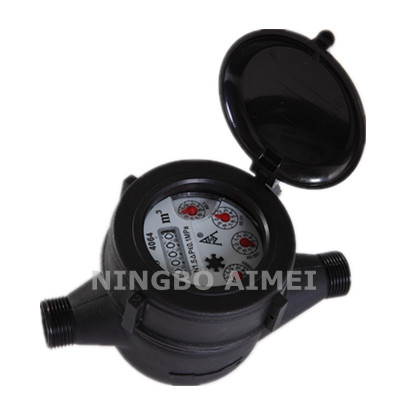

FEATURES Adopting pointer and word-wheel combination count device, with advanced, beautiful and elegant structure, the counter is sealed by special type liquid, the reading is clear for long, convenient meter copy and long service life. Class C water meter is available for 15mm (1/2 inch) and 20mm (3/4 inch).
WORKING CONDITION Water temperature: ≤50℃ for cold water meter ≤90℃ for hot water meter Water pressure: ≤1MPa or 1.6MPa optional (10bar or 16bar optional)

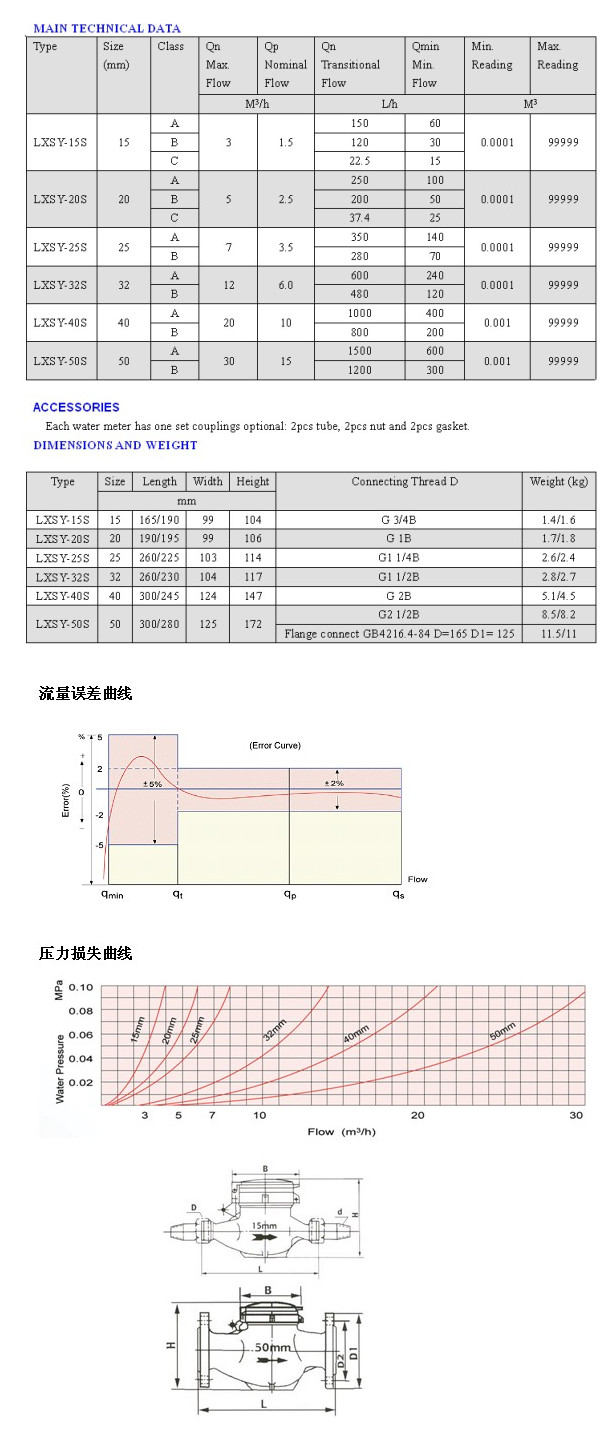

MAXIMUM PERMISSIBLE ERROR In the lower zone from Qmin inclusive up to but excluding Qt is ±5% _ In the upper zone from Qt inclusive up to and including Qs is: cold water meter ±2%, hot water meter ±3%. NOTE Technical data conform to International Standard ISO4064
|
