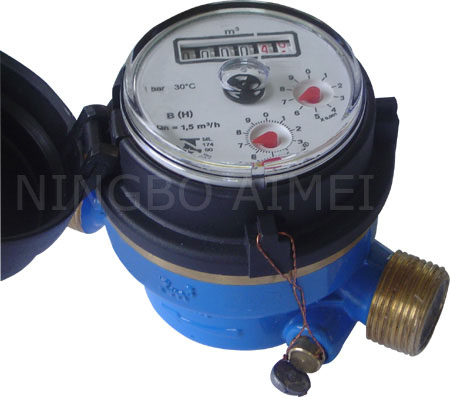

APPLICATION: ◆ Measuring the volume of cold potable water passing through the pipeline.
FEATURES: ◆ Single jet, dry dial; ◆ Magnetic drive, magnet resistance; ◆ Optimum accuracy and performance at all times; ◆ Accurate measurement, easy and long term clear reading, etc. ◆ Measuring accuracy is up to ISO4064, Class C
WORKING CONDITION: ◆Water temperature: ColdWater Meter ≤50℃ Hot Water Meter ≤90℃ ◆Water pressure: ≤1.6Mpa(16bar)

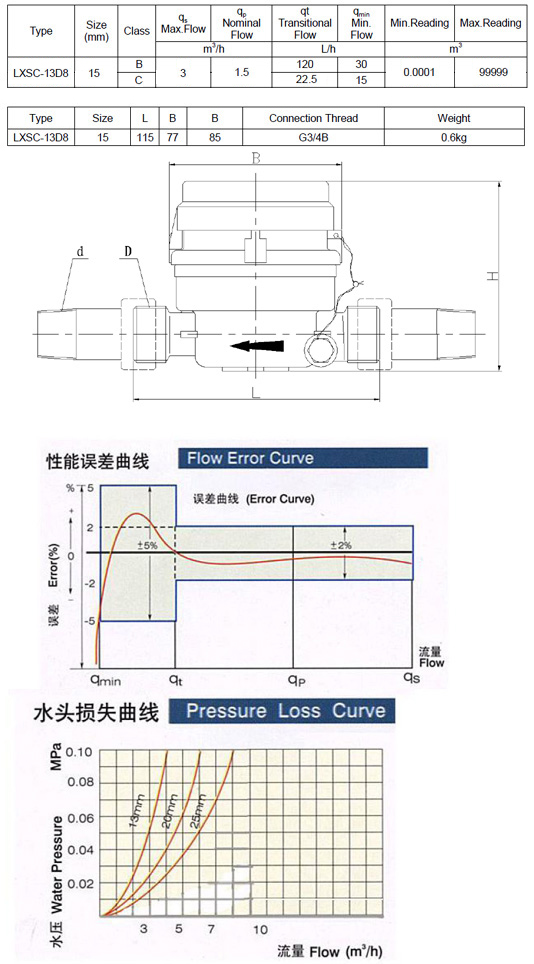

MAXIMUM PERMISSIBLE ERROR: ◆In the lower zone from q min inclusive up to but excluding q is ±5% ◆In the upper zone from q inclusive up to and including q is ±2% |
