APPLICATION:

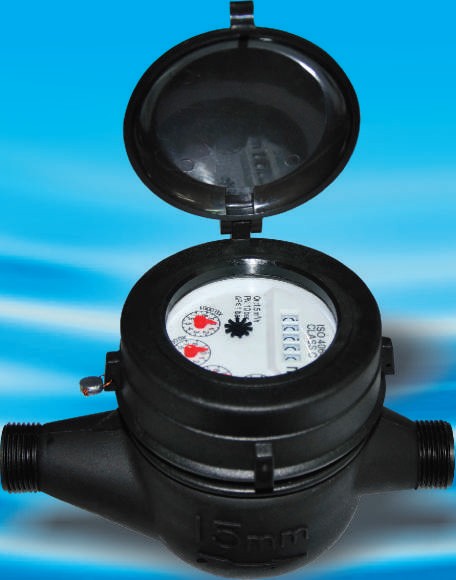

◆Measuring the volume of cold potable water passing through the pipeline.

FEATURES:
◆ Completely plastic shell, solid and robust design, long service guaranteed.
◆ High quality materials fiberglass reinforced polymerization amine, corrosion resistance.
◆ Pole ring magnet polymer coating as protection against deposits.
◆ The measuring mechanism can be exchanged.
◆ Anti-magnet.
◆ Large measuring range high flow accuracy.
◆ Steady curve characteristics.
◆ Measuring accuracy is up to ISO4064, Class D.

WORKING CONDITION:
◆Water temperature: ≤50℃
◆Water pressure: ≤10 bar (16 bar on request)

MAXIMUM PERMISSIBLE ERROR：
◆In the lower zone from qmin inclusive up to but excluding qt is ±5%
◆In the upper zone from qt inclusive up to and including qs is ±2%
