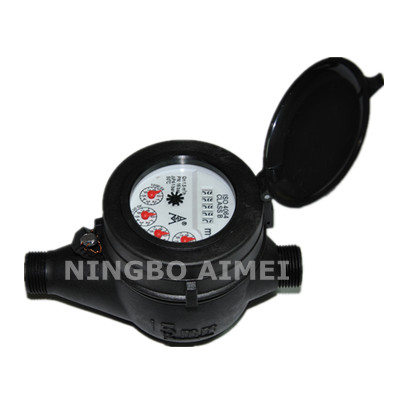

APPLICATION: ◆ Measuring the volume of cold potable water passing through the pipeline.
FEATURES: ◆ Completely plastic shell, solid and robust design, long service guaranteed. ◆ High quality materials fiberglass reinforced polymerization amine (UL NO.: E154352: SGS Report NO.: CE/2006/34019), corrosion resistance. ◆ Pole ring magnet polymer coating as protection against deposits. ◆ The measuring mechanism can be exchanged. ◆ Anti-magnet. ◆ Inside calibration device. ◆ Large measuring range high flow accuracy. ◆ Steady curve characteristics. ◆ Measuring accuracy is up to ISO4064, Class B. ◆ Overload flowrate: Qs=2Qp (Qn=nominal flowrate)
WORKING CONDITION: ◆Water temperature: ≤50℃ ◆Water pressure: ≤ 10bar (16 bar on request)

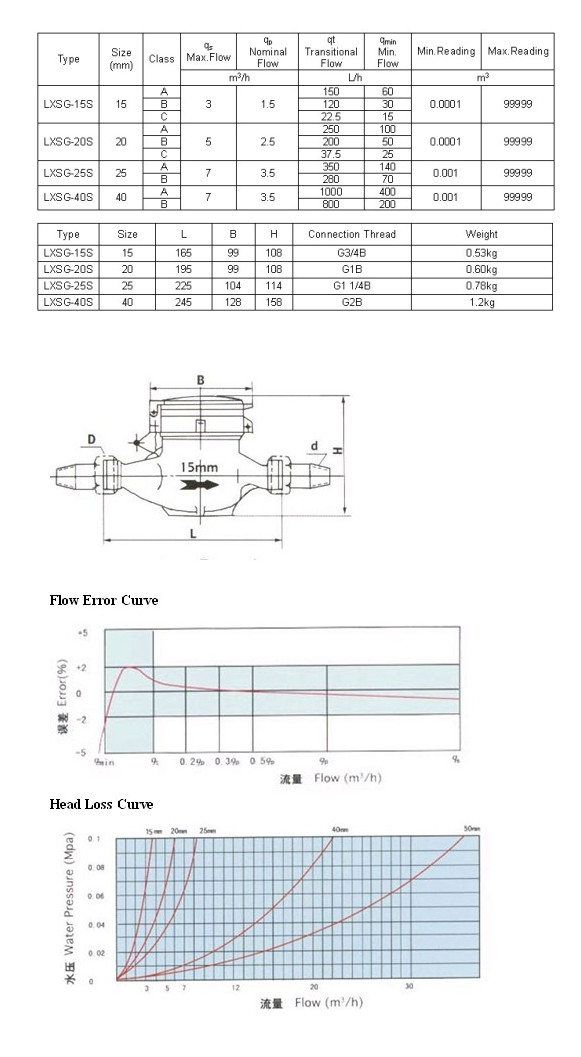

MAXIMUM PERMISSIBLE ERROR: ◆In the lower zone from qmin inclusive up to but excluding qt is ±5% ◆In the upper zone from qt inclusive up to and including qs is ±2%
ACCESSORIES Optional: Both brass thread connections and plastic thread connections are available.
|
